Product Description
Our Product Feature:
1. Inside and Outside Bead Scarfing
2. Outside Metallizing for Aluminum Coated Pipes
3. Higher Expansion Rate
4. Smooth Surface Roughness
5. Accurate Roundness
1) Material of stainless steel: grade: SS409/SUH409L/ X7Cr Ti12, 1.4512/1.4720, 436L, 439
2) Standards: JIS G4312/DIN EN10088 or DIN 174553
3) Outer diameter: 12.7mm, 19mm, 20mm, 21mm, 22mm, 23mm,24m, 25.4mm, 30mm, 31.8mm, 37mm, 38.1mm, 50mm, 50.8mm, 63mm, 63.5mm, 76m, 89mm,101.6mm, 106.6mm, 108mm, 114.3mm,
4) Tthickness: 1.0/1.2/1.5/2.0MM
5) Length: 6m (or according to customers' requests)
6) Condition: Welded, outside polish or mill finish
7) Packing: each tube in a plastic bag with size label outside, about 500-800kg in one bundle with a hanging belt in middle or according to customers’ request.
Production Size:
O.D./MM | Thicknes/MM | Welding point | Remark | |
Normal OD | Can be produced OD | |||
25.4 | 25.0~26.0 | 1.0/1.2/1.5/2.0 | Inside and outside bead Scarfing | Material to be used all size 1. Stainless Steel 2. Aluminum coated steel |
31.8 | 31.0~32.0 | |||
34 | 33.5~34.2 | |||
35 | 34.5~35.2 | |||
38.1 | 37.5~38.3 | |||
41.3 | 40.7~41.5 | |||
42 | 41.3~42.9 | |||
45 | 44.3~45.2 | 1.0/1.2/1.5/2.0 | ||
48.6 | 47.9~48.8 | |||
50.8 | 49.8~51.0 | |||
54 | 53.2~54.2 | |||
60.5 | 59.5~60.7 | 1.0/1.2/1.5/2.0 | ||
63.5 | 62.5~63.7 | |||
76.3 | 75.3~76.5 | |||
88.9 | 87.9~89.1 | 1.0/1.2/1.5/2.0 | ||
101.6 | 100.5~109.0 | |||
114 | 113.5~114.5 | |||
127 | 126.5~127.5 | |||

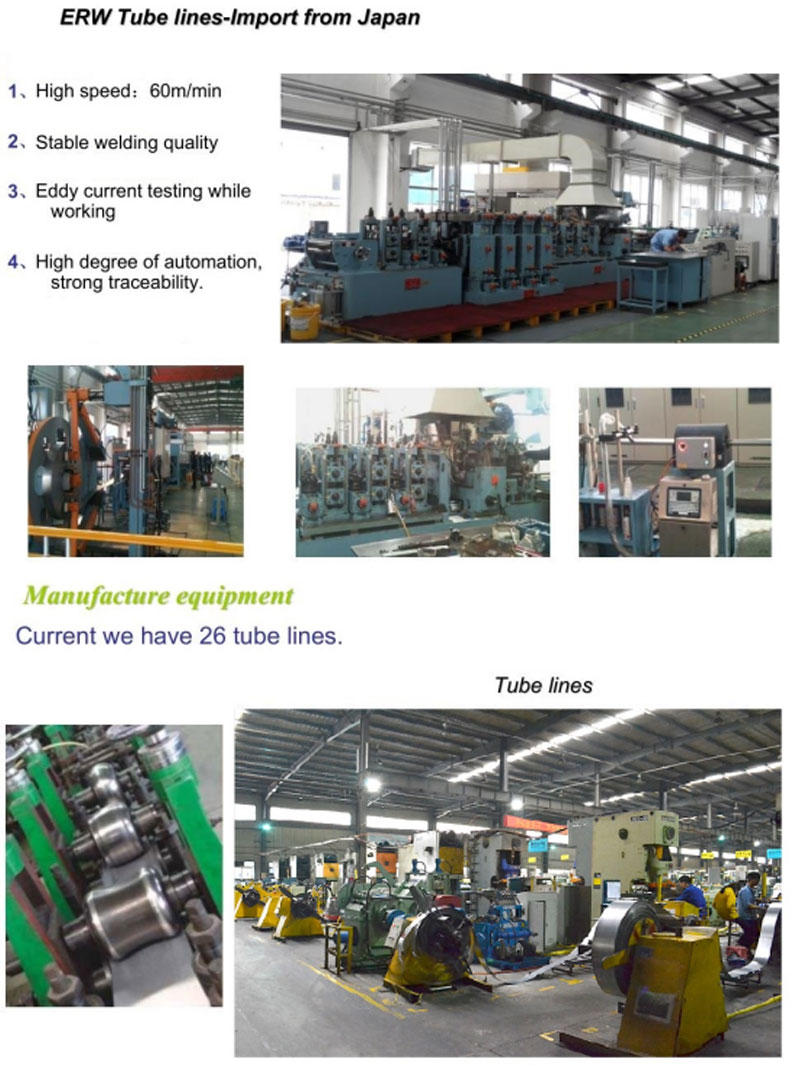

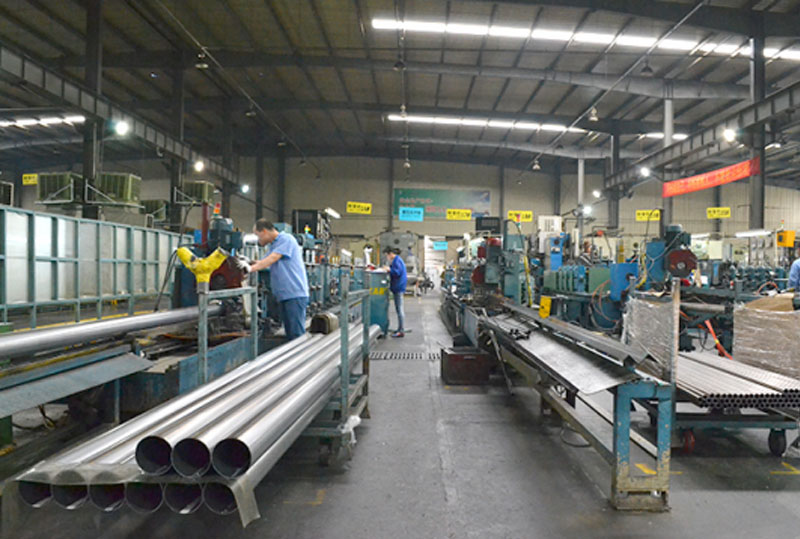

Our production site:

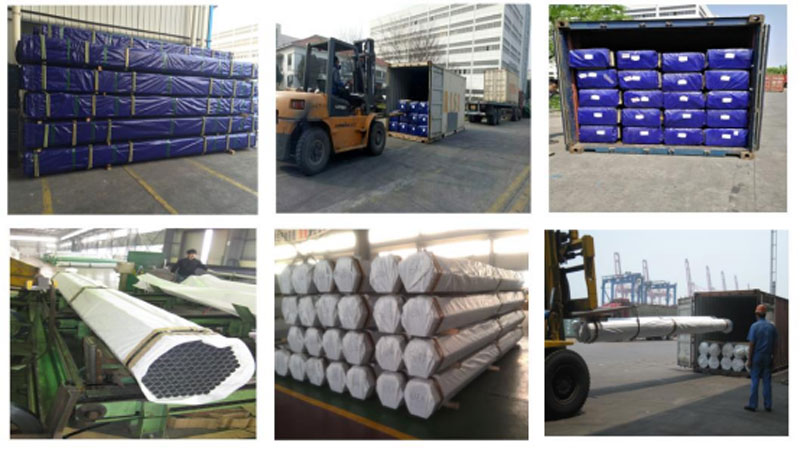

Package and shipment:
